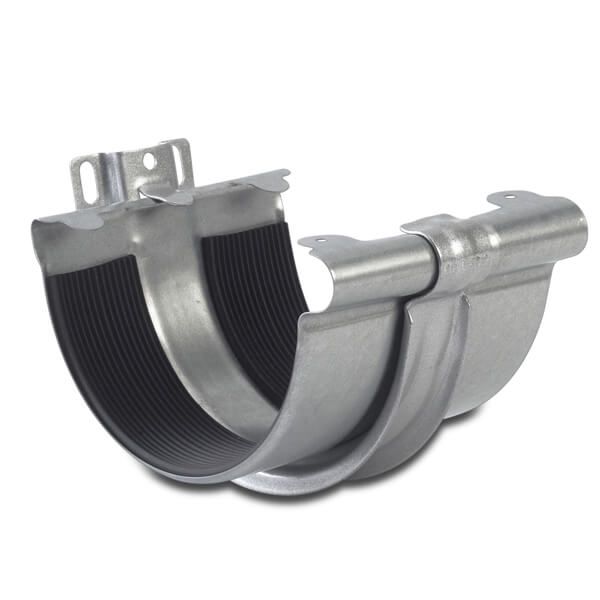

Steel Gutter Union with Bracket - 135mm Galvanised
|Dimension||155mm (L) x 120mm (W) x 110mm (H)|
|Guarantee||35 Years Manufacturers Mechanical & 15 Year Colour Guarantee|
|Life Expected||50 Years +|
As an alternative to the floating union, this fitting type of gutter union incorporates a fixing brackets, eliminating the requirement for the union to be supported with fascia brackets within 150mm.
You can watch a quick video overview below (30secs)
The back edge of the guttering is first inserted into the union, the front edge is then lowered into position and the locking tabs are stretched down into place using an alan key. This compression of the gutter onto the rubber seal creates a watertight joint.
We recommend the use of silicon spray on all rubber seals to improve adhesion and long term seal performance.
