Ogee Gutter Internal Angle - 135 Degree x 80mm Anthracite Grey

In stock
Code
RAN3AG
More Information
Code RAN3AG
EAN Code 0691208213837
Angle 135 Degree
Brand FloPlast
Colour Anthracite Grey
Dimension 174mm (W) x 163mm (L) x 96mm (D)
Guarantee 10 Years Manufacturers
Material PVC-u
Specification BS EN 12200 / BS EN 607 / BS EN 1462
Weight (kg) 0.258000
Size 110mm x 80mm
£5.69 £4.74
You need to spend another £250.00 to qualify for 2.5% discount.

Our Square Gutter and Fittings are manufactured by UK market leaders FloPlast.

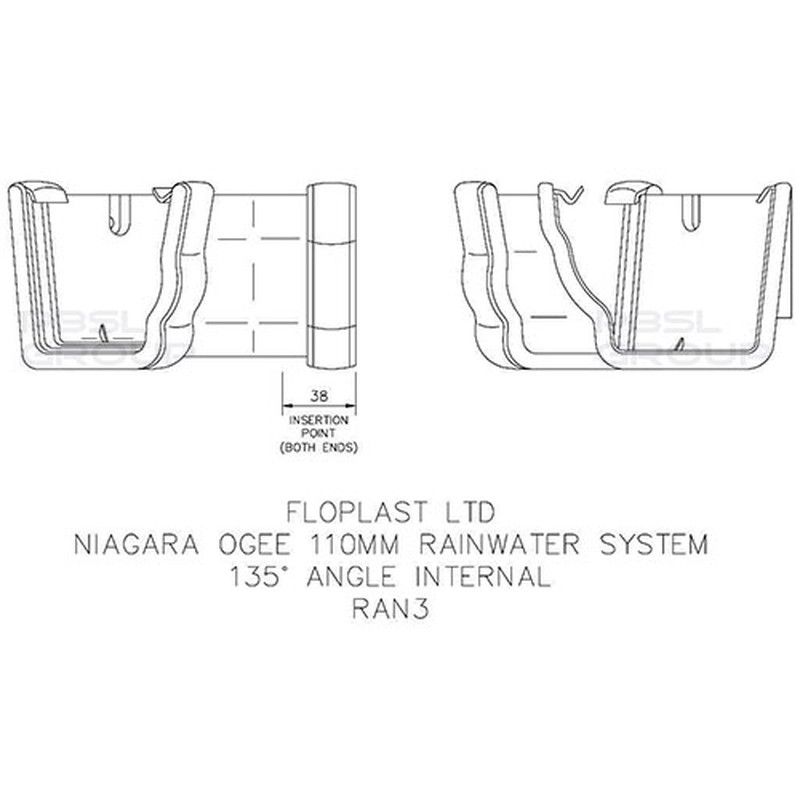

Ogee 135 degrees gutter angles (sometimes referred to 45 degrees angles), are generally used on conservatories and bay windows. As the Niagara Ogee Gutter is not a symmetrical system, these must be ordered as either internal or external. The best way to understand the difference between an internal and an external corner is to view the pictures and remember that the flat side of the fitting always fits against the fascia board. These internal angles are most commonly found at the point where a bay window meets the main house gutter.

Our article on Buying and Installing Ogee Gutter may also be helpful here.

For a quick overview of gutter angles please watch the short video below:

The guttering should always be supported by a fascia bracket within 150mm (6") of any 135 degrees angle. This is to prevent water from collecting in the fitting, which in turn would cause the gutter angle to drop down, putting stress on the joints and reducing the flow rate.

You can view a video on how to correctly install FloPlast Gutter systems in our Guides and Tips Section.
