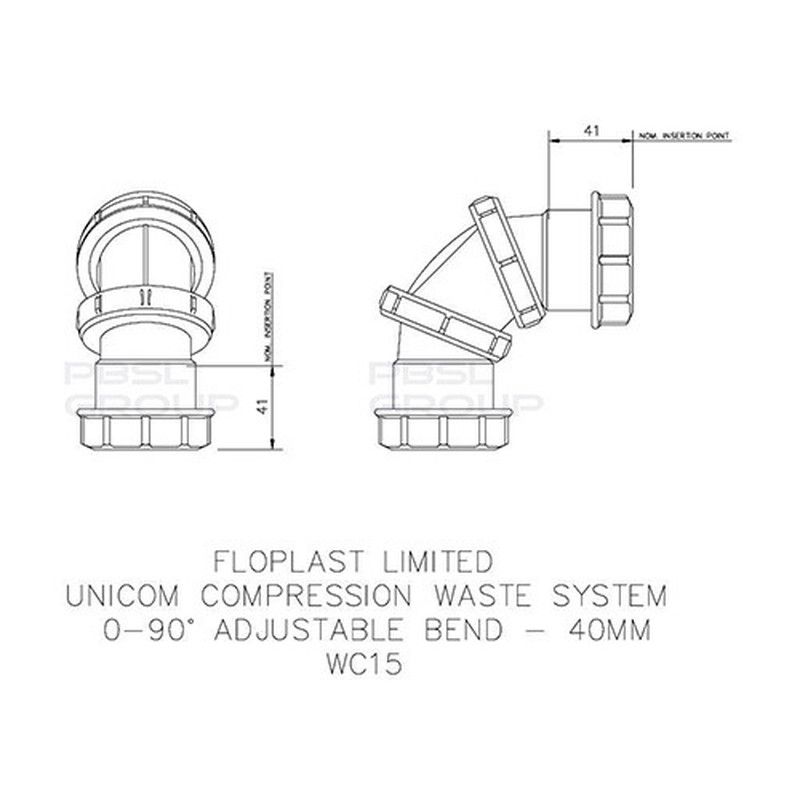

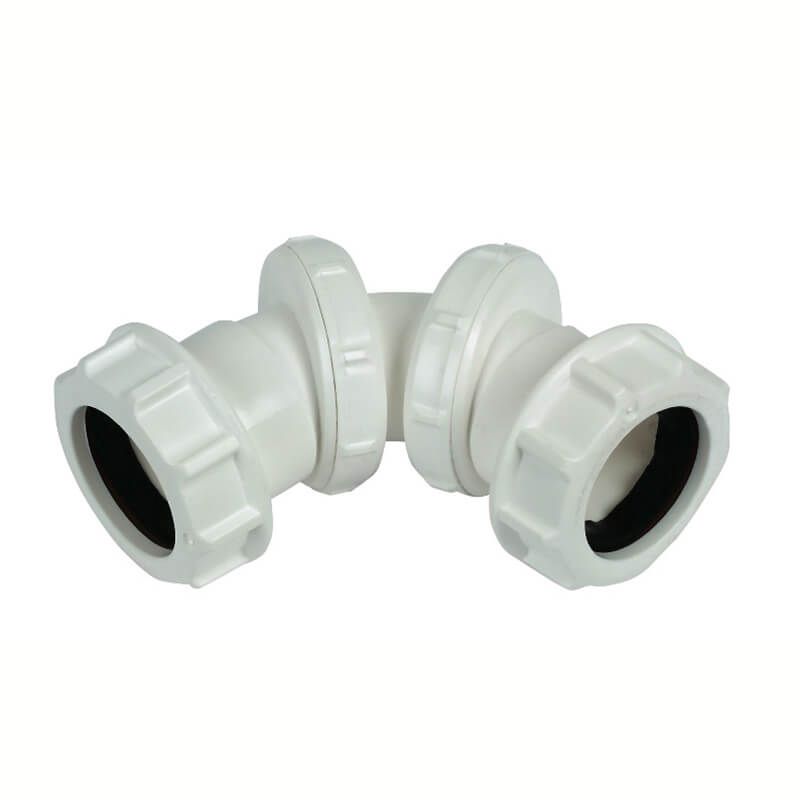

FloPlast Multi Fit Compression Waste Adjustable Bend - 0-90 Degree x 40mm

In stock
Only %1 left
Code
WC15

Click or tap the image to open in fullscreen

FloPlast Multi Fit Compression Waste Adjustable Bend - 0-90 Degree x 40mm
FloPlast Multi Fit Compression Waste Adjustable Bend - 0-90 Degree x 40mm
More Information
Code WC15
£19.74 £16.45 £18.60
Spend another £1500 to pay over time with Klarna

Adjustable bends can be used are used to create any angle between zero and 90 degrees in a waste pipe system. This is achieved by the use of two clever swivel joints within the body of the fitting.

This fitting is available in 32mm and 40mm size options.

This compression waste system is manufactured in the UK to BS EN 1451. It is commonly used to connect waste pipes of differing materials or those made by different manufacturers.

When making a compression joint, cut the pipe square and remove any burrs. Unscrew the nut from the fitting and remove it along with the washer and the rubber seal. Place these three components over the end of the pipe – first the nut, then the washer followed by the seal. The dished side of the rubber seal should face away from the nut and towards the fitting. Push the pipe into the fitting as far as it will go, slide the seal and washer forward into position in the fitting and tighten the nut.

The joint can be taken apart again if required, but always check that the rubber seal has not been damaged in any way as this will cause the joint to leak.

Click here to watch our video showing how to assemble a compression waste joint.
