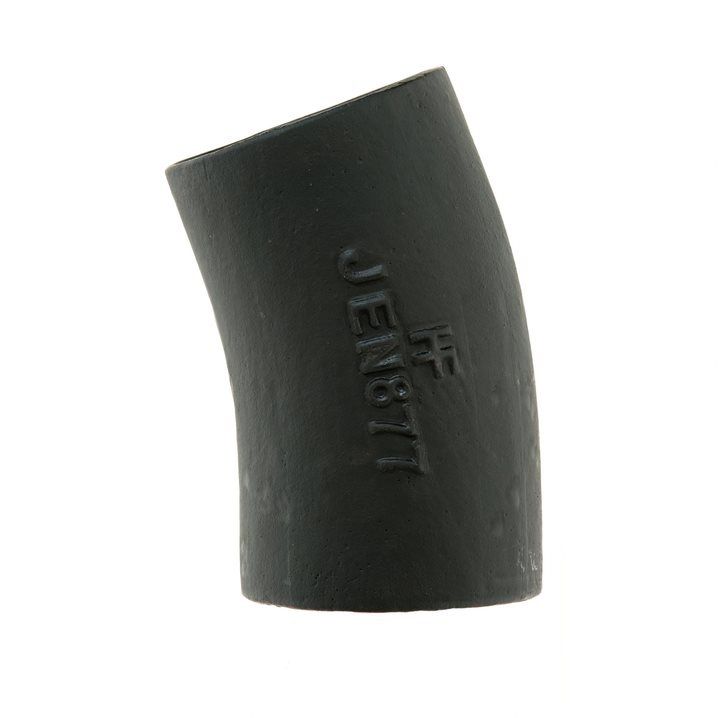

Mech 416 Cast Iron Soil Long Radius Bend - 22.5 Degree x 100mm
In stock
Code
MS4009
Click or tap the image to open in fullscreen
| Code | MS4009 |
|---|---|
| EAN Code | 0755907217746 |
| Angle | 22.5 Degree |
| Brand | Hargreaves Mech 416 |
| Colour | Matt Black Epoxy Coated |
| Diameter | 100mm |
| Material | Cast Iron |
| Pack Size | Single |
| Life Expected | 100 Years + |
| Specification | BS 416 (part 2) |
| System Size | 100mm |
This 22 degree bend is used to create a change of direction in the soil stack. It is available in 100mm.
As Mech 416 pipes and fittings have no sockets, couplers are required to connect this bend to a pipe.
