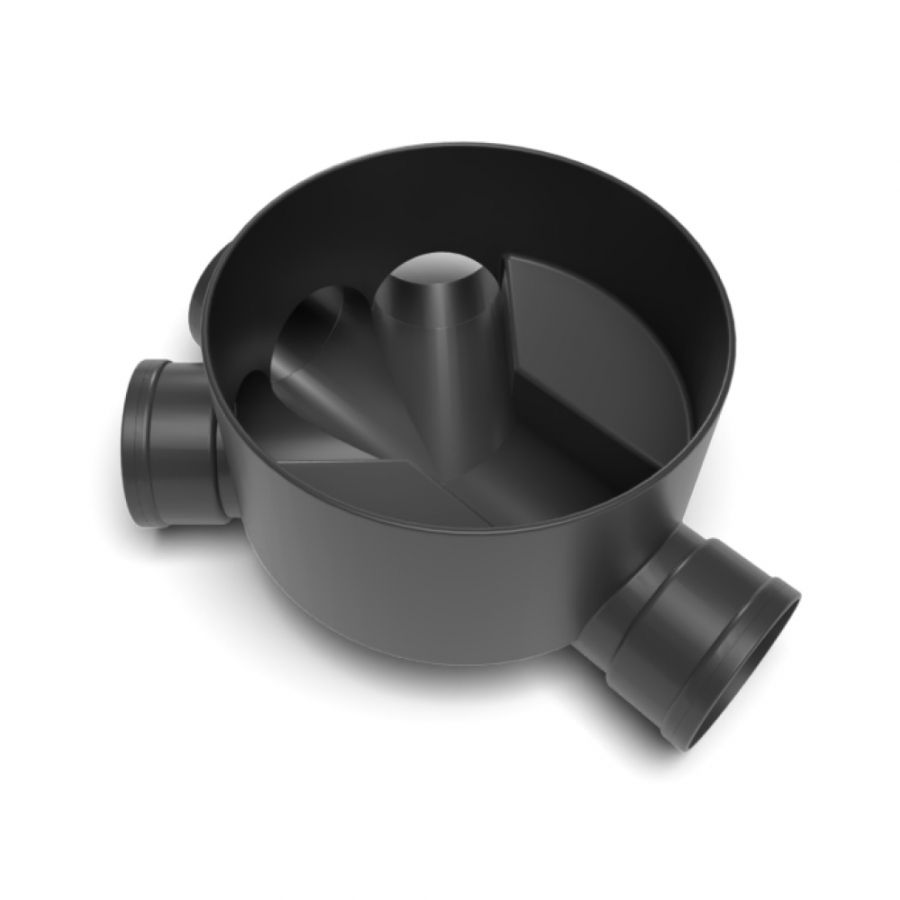

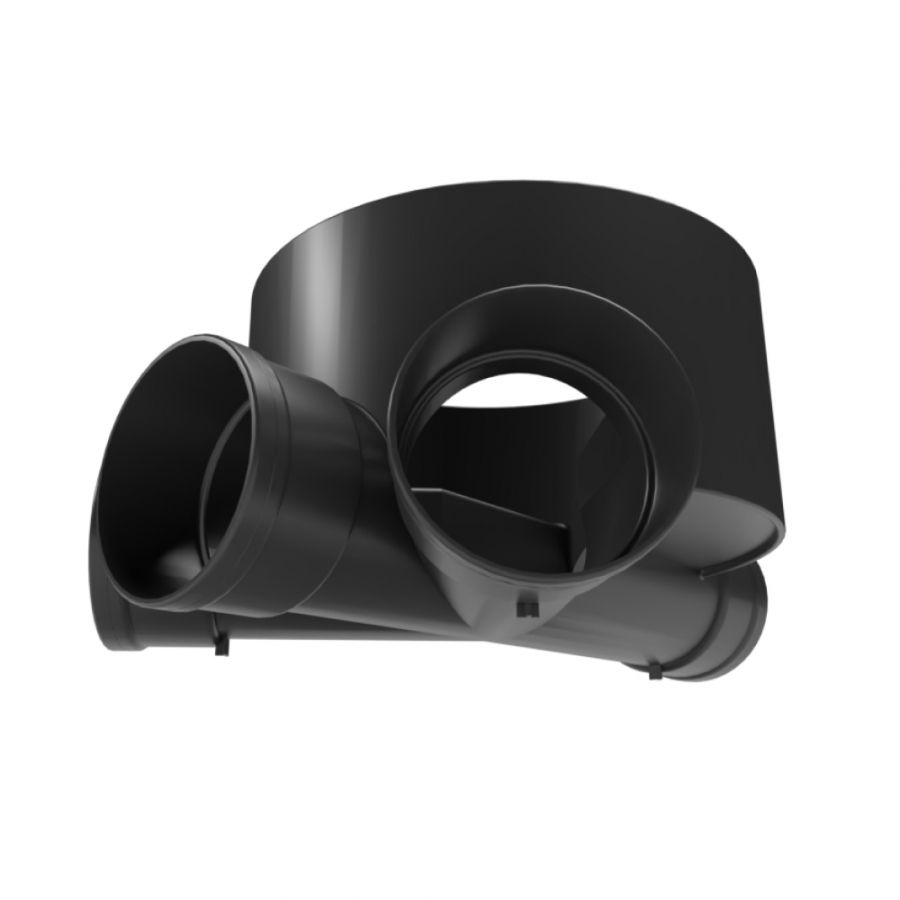

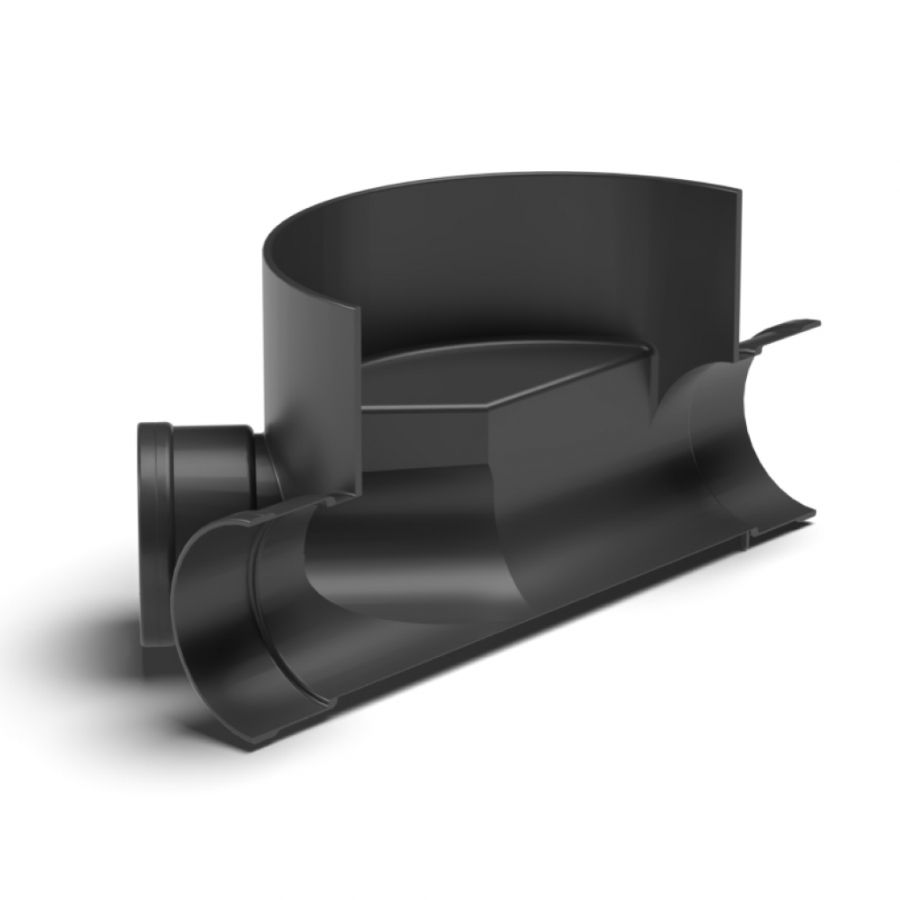

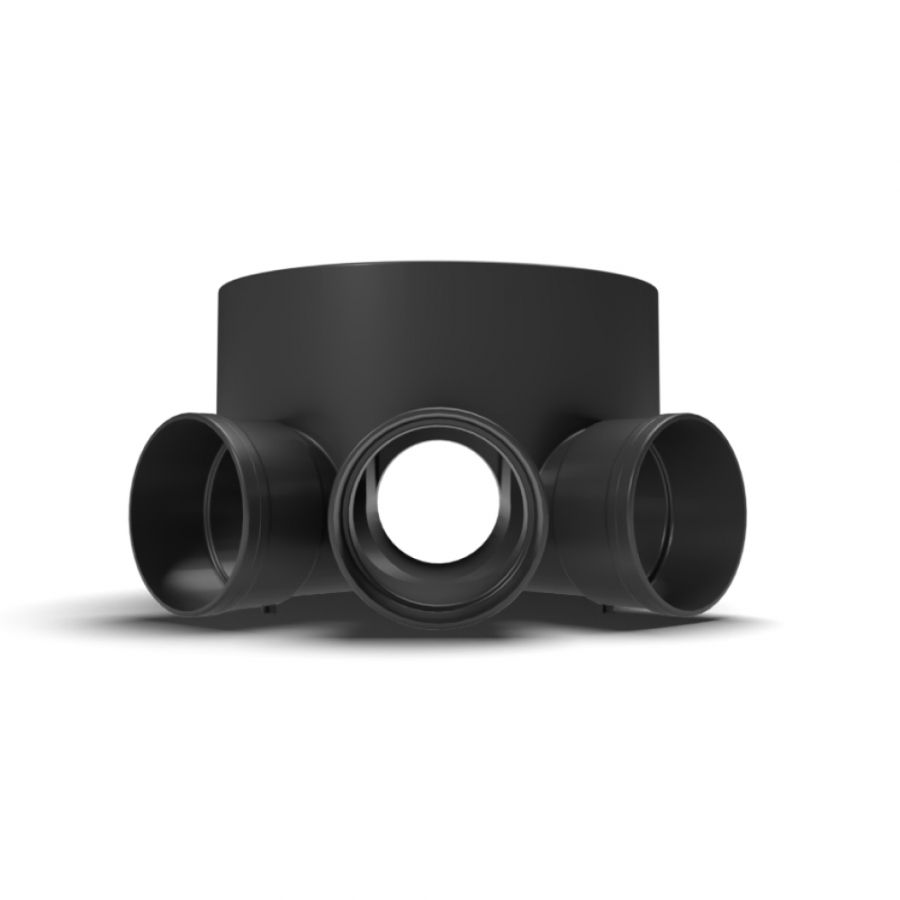

Inspection Chamber Base Level Invert 3 Fixed Inlets - 320mm Diameter

Level invert chambers are often used when the installer has little fall to play with on the pipe run, such as when connecting a new section of drainage to an existing pipe run. A standard mini access chamber has an integral fall from the side inlet to the base, and this can take up valuable height when trying to minimise the fall on the new pipe.

This level invert chamber base has two side inlets set at 45 degrees to the main channel. The side inlets are blanked off with push fit blanking plugs. This enables the installer to remove only the plugs that are required, leaving any unused inlets safely sealed.

Please note this base should only be used in conjunction with CDU354 riser and CD356 cover and frame.
