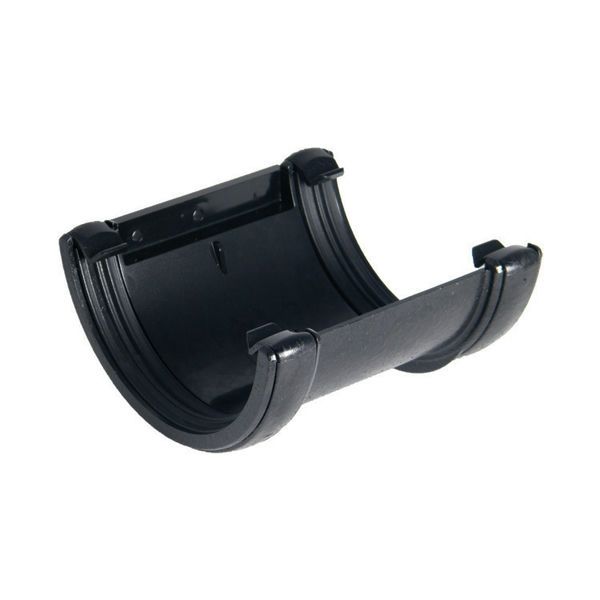

Half Round Gutter Union Bracket - 112mm Cast Iron Effect
Click or tap the image to open in fullscreen
|Colour||Cast Iron Effect|
|Dimension||139mm (L) x 132mm (W) x 70mm (D)|
|Specification||BS EN 12200 / BS EN 607|
Gutter is clipped in place using the same method was when installing all gutter fittings - the back edge first, then pull the front edge gently down into position until the clip snaps into place. Inside the gutter union are insertion marks, which show exactly where the gutter should be positioned. Aligning the gutter to these marks ensures that as the gutter expands and contracts with changes in temperature, the seal still makes full contact with the gutter.
The waterproof seal is achieved by the downward pressure of the clips compressing the small rubber seal evenly around the outside of the gutter.
Unions are fixed back to the fascia board using two countersunk screws.
