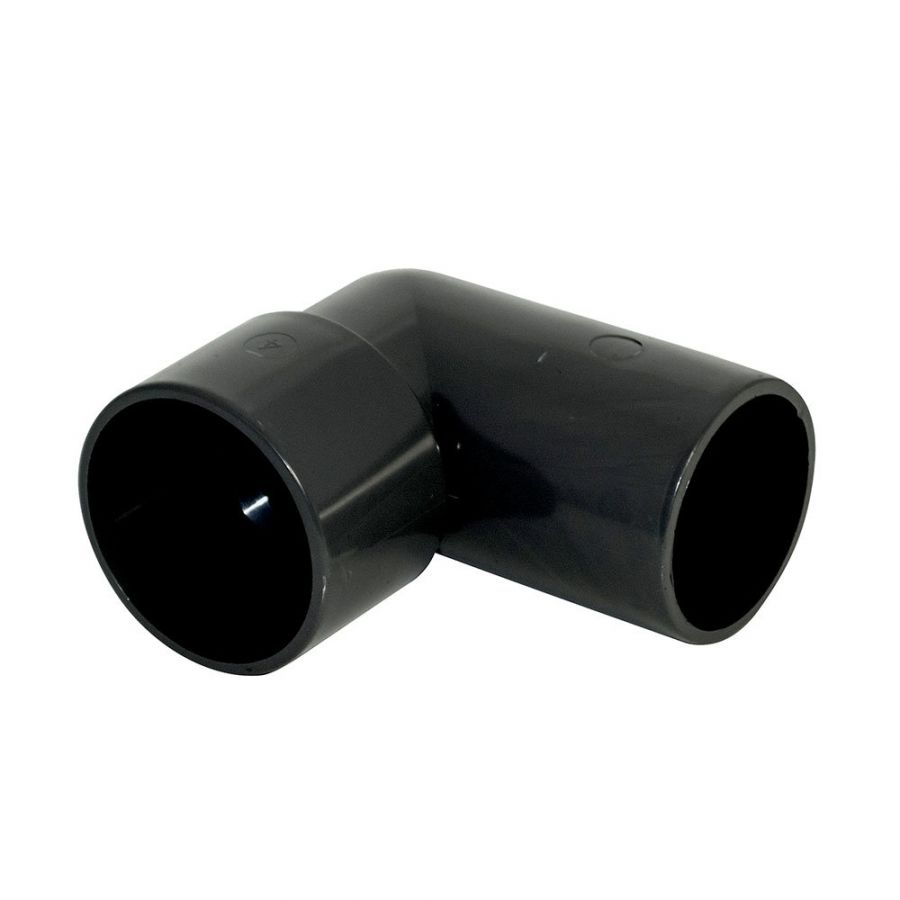

FloPlast Solvent Weld Waste Swivel / Conversion Bend - 92.5 Degree x 50mm Black
Click or tap the image to open in fullscreen
| Code | WS28B |
|---|---|
| EAN Code | 0798237211879 |
| Weight (kg) | 0.070000 |
| Angle | 92.5 Degree |
| Brand | FloPlast |
| Colour | Black |
| Diameter | 50mm |
| Material | ABS |
| Pack Size | Single |
| Guarantee | 1 Year Manufacturer Performance Guarantee |
| Specification | BS EN 1455-1:2000 |
| System Size | 50mm |
135 degree swivel bends are used to create a tight radius 45 degree change of direction in a waste pipe system. They are also often referred to as 45 degree M and F bends or spigot bends. They have a long tail that is usually inserted into the socket of another fitting.
_x000D_This fitting is available in 32mm, 40mm and 50mm size options.
_x000D_Our solvent weld waste is manufactured in the UK to BS EN 1455 and is kitemarked.
_x000D_To make a solvent weld joint, first ensure that the outer wall of the pipe and the inner wall of the fitting are both clean and free from grit or swarf. Apply SC250 solvent cement to both surfaces. Push the pipe fully into the fitting and give it a twist to ensure that full contact has been made. Clean off any excess solvent with a damp cloth and leave for 5 minutes to set. The installation should be left for 12 hours before testing.
_x000D_Click here to watch a step by step video of how to make a solvent weld joint.
_x000D_Solvent weld joints are permanent - they cannot be demounted once the joint has been made. When using solvent cement, always work in a well ventilated area and keep the cement away from heat sources or naked flames. Avoid any contact with skin - if contact does occur then wash thoroughly with soap and water.
