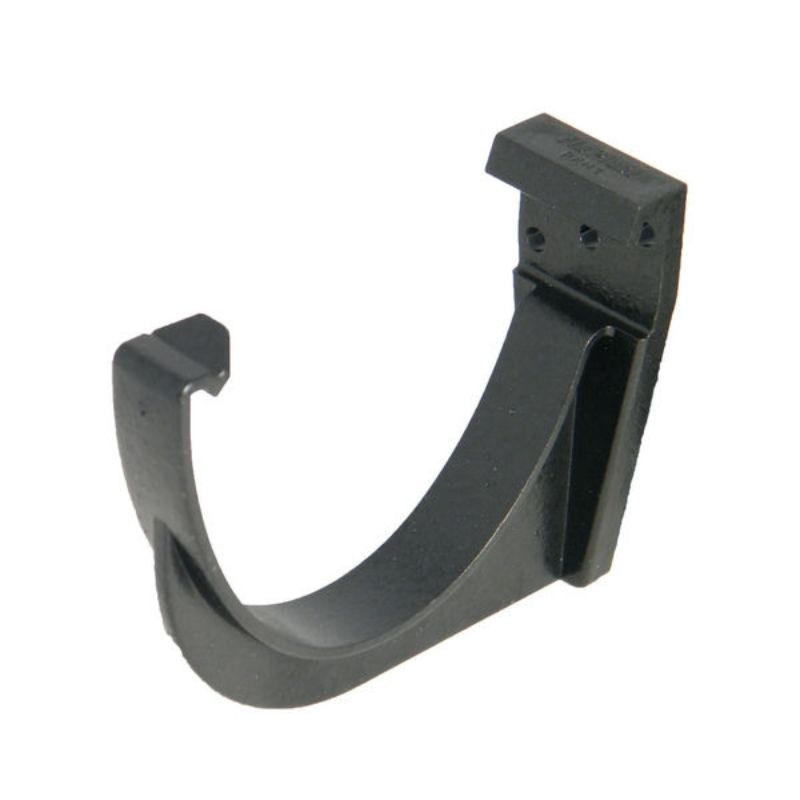

FloPlast Deepflow/ Hi-Cap Gutter Fascia Bracket - 115mm x 75mm Cast Iron Effect
Click or tap the image to open in fullscreen
| Code | RKH1CI |
|---|---|
| EAN Code | 5055149925290 |
| Weight (kg) | 0.057900 |
| Width | 40mm |
| Brand | FloPlast |
| Colour | Cast Iron Effect |
| Dimension | 40mm (W) x 130mm (H) x 106mm (L) |
| Guarantee | 20 Year |
| Length | 106mm |
| Height (mm) | 130mm |
| Material | PVC-u |
| Pack Size | Single |
| Specification | BS EN 12200 / BS EN 607 |
| System Size | 115mm x 75mm |
These fascia brackets, also known as gutter brackets or gutter clips, are the main supports for a deep guttering system.
The bracket is screwed to the fascia board using two countersunk screws (we recommend 5 x 25mm or 5 x 30mm). The gutter is then clipped in place by first sliding the back edge in under the rear clip and pulling gently down on the front edge to clip the gutter into position.
Deepflow cast iron effect guttering fascia brackets should be spaced at a maximum of 1m centres, although if you live in an area that is prone to heavy snowfall we suggest reducing the centres to a maximum of 800mm and even as close together as 400mm - heavy, regular snowfall snow does exert a large load on a gutter.
